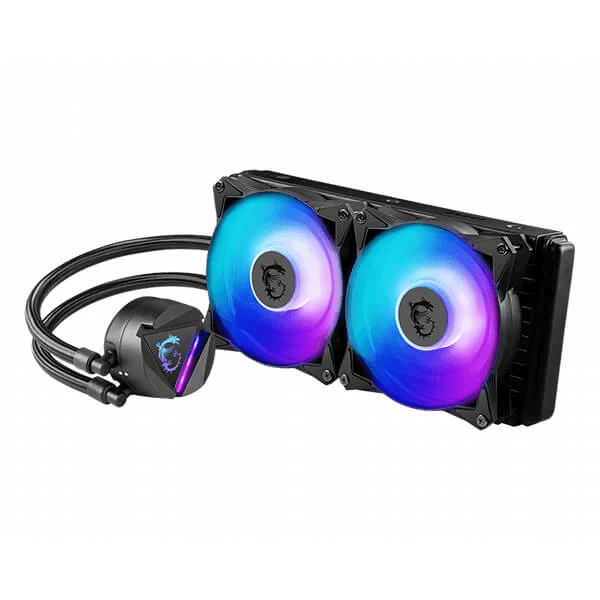

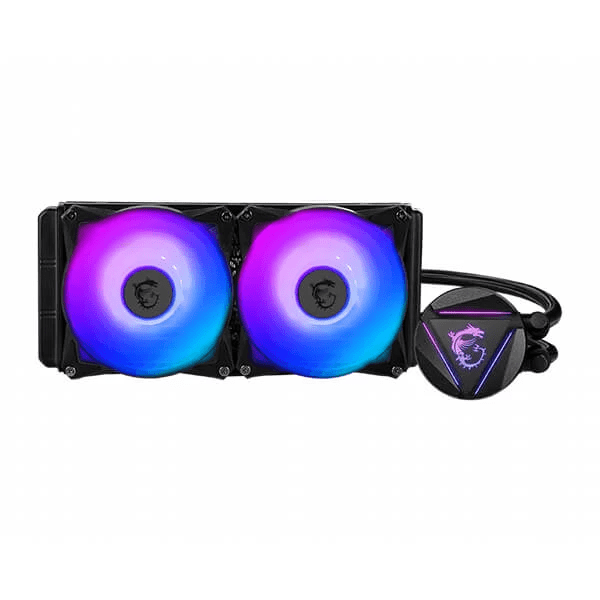

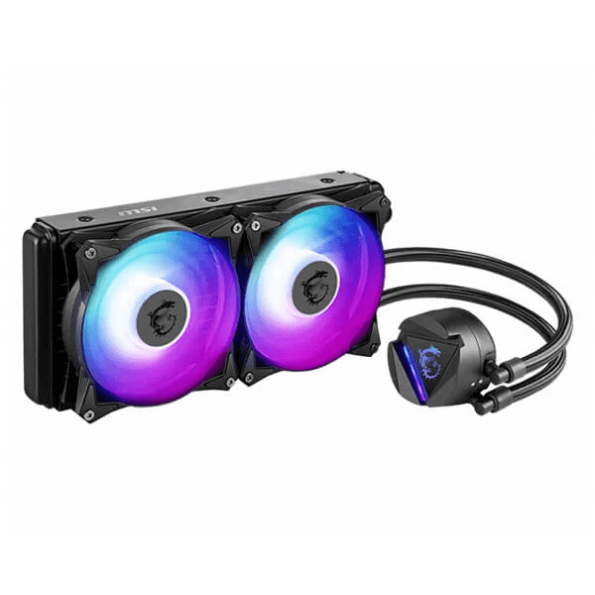

MSI MAG Coreliquid 280R ARGB CPU Liquid Cooler
- Long Lasting Reliability: A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
- Total RGB Fan Control: The included RGB fans support custom speed with PWM fan and customizable lighting through software.
- Rotatable Cap: Mount the cold plate in any orientation, turn the cap up to 270 degrees to keep it upright.
- Radiator Pump Design: The pump has been integrated into the radiator for noise reduction as well as increased life expectancy due to being away from heat source.
- Compatible Sockets & CPU: Intel LGA1150/1151/1155/1156/1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, TR5
MSI MAG Coreliquid 280R ARGB CPU Liquid Cooler
Features

Conquer the Battlefield
The MSI MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
MAG CORELIQUID
The newly introduced MAG CORELIQUID 280R has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID 280R is designed with the end goal in mind: to provide effective cooling without any compromise.
Rotatable Blockhead
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 280R’s noise level is significantly lower than that of competitor’s by 14%.

EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID 280R has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
SPECIFICATIONS
| Radiator Dimensions (W×D×H) | 312 × 140 × 27 mm, 12.28 × 5.51 × 1.06 in |
| Radiator Material | Aluminum |
| Number of Fans | 2 |
| Fan Dimensions (W×D×H) | 140 × 140 × 25 mm, 5.51 × 5.51 × 0.98 in |
| Fan Airflow | 84.36 CFM |
| Fan Bearing Type | Two Ball Bearing |
| Fan Rated Current | 0.19 A |
| Fan Power Consumption | 2.28 W |
| PWM Mode Support | Yes |
| PWM Cable Lengths | 550 mm / 350 mm (21.65 / 13.78 in) |
| Fan Lighting | ARGB |
| Pump Power Consumption | 4.08 W |
| Pump Speed | 4200 ±10% RPM |
| Pump Block Dimensions | 80.57 × 66.82 × 48.58 mm, 3.17 × 2.63 × 1.91 in |
| Intel Socket Support | LGA 1150/1151/1155/1156/1200, 1366/2011/2011-3/2066 |
| AMD Socket Support | AM5, AM4, FM2+/FM2, FM1, AM3+/AM3, AM2+/AM2 |
| Included Accessories | 1 × 1-to-2 Fan PWM Cable<br>1 × PSU Molex 4-Pin to 4-Pin (2-Pin Wired) Fan Cable |
| Warranty | 3 Years |
| Note | Features, price, and specifications are subject to change without notice. |
| Dimensions | 32 × 21 × 14 cm |
|---|---|
| Brand | MSI |
| Cooling Type | Liquid |
| Fan Size | 140mm * 2 |
| Fan Speed | 500 – 1800 RPM |
| Lighting Profile | ARGB |
| Lighting Type | A-RGB |
| Radiator Size | 280mm |
| Socket | AM2+, AM3, AM4, FM1, FM2, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1366, LGA 2011, LGA 2011-3, LGA 2066 |
| EAN Code | 824142250419 |
| Warranty | 2 Years |
