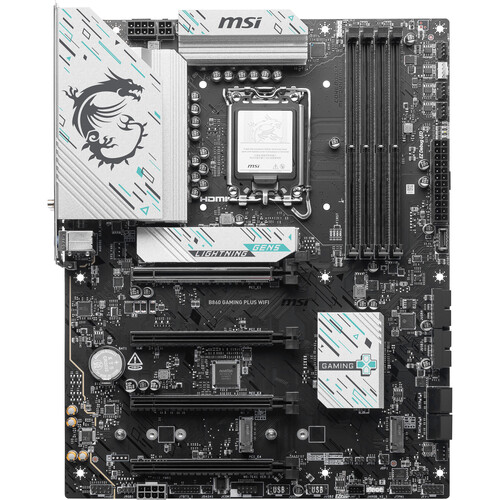

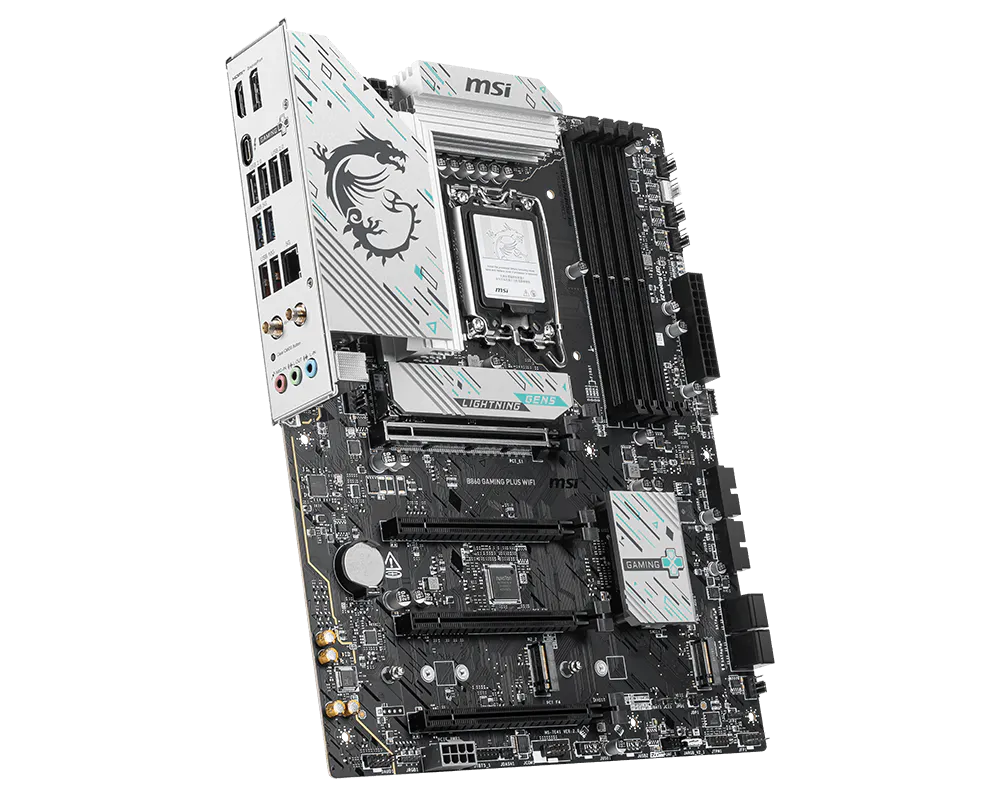

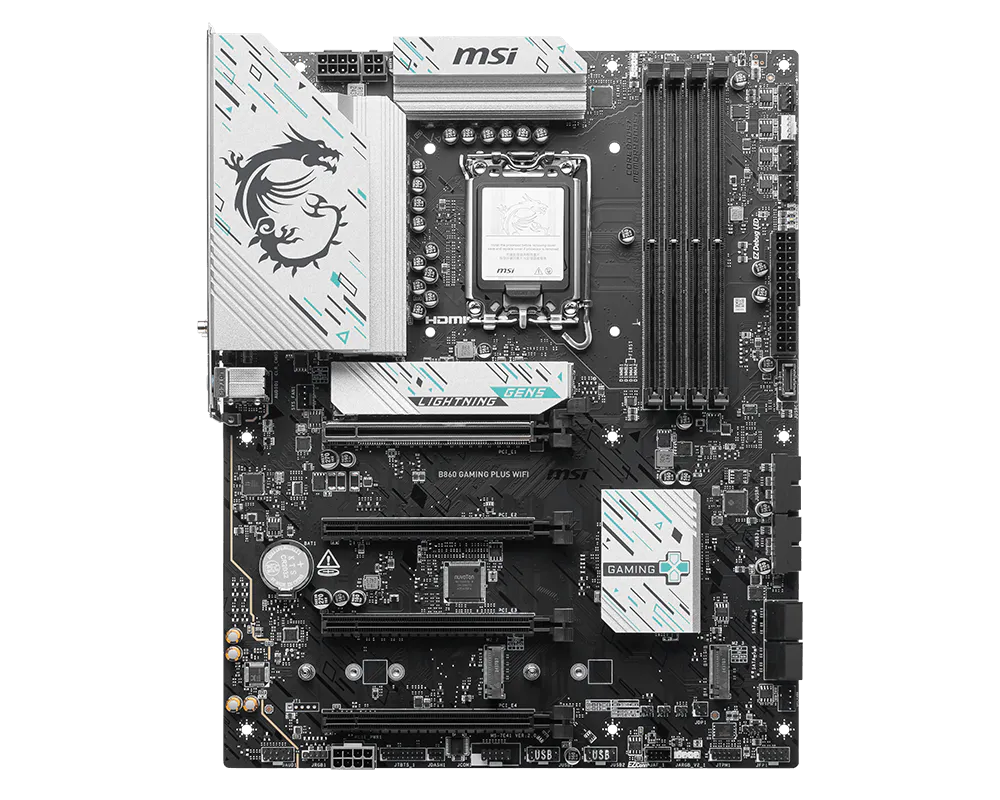

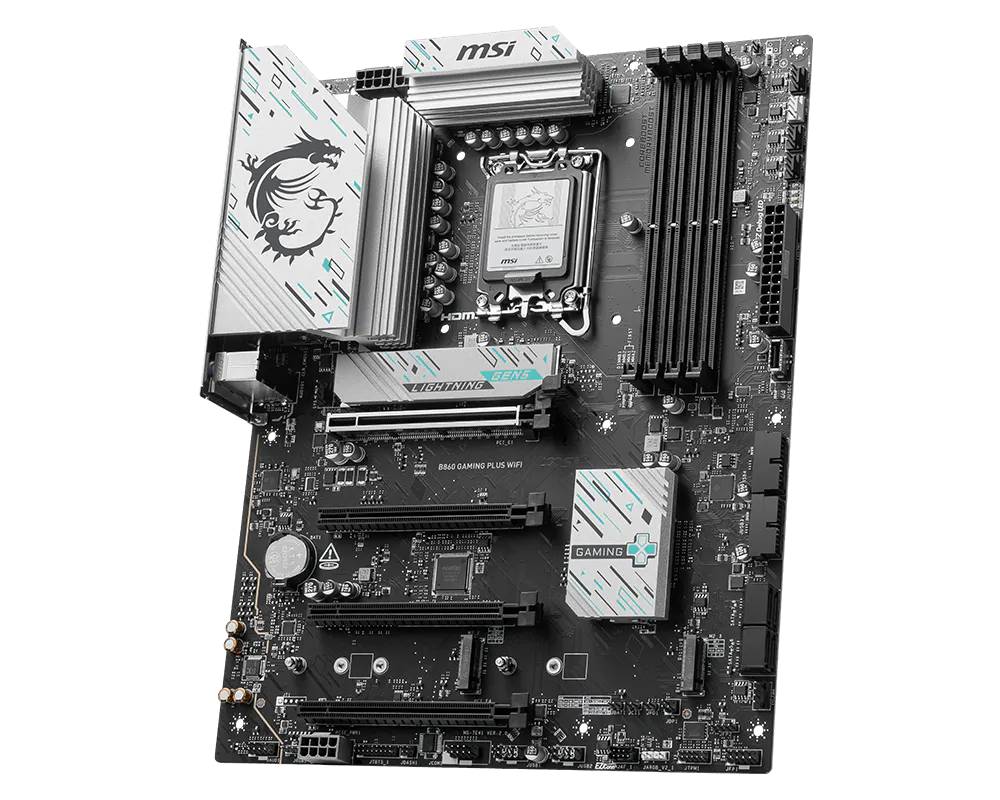

MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard

Kick load times to the curb. In addition to supporting four 6 Gb/s SATA III drives, the M.2 PCIe 5.0 slot can deliver up to 128 GB/s transfer speeds with compatible NVMe SSDs. Installed SATA and M.2 drives may be put in RAID 0, 1, or 10 modes.

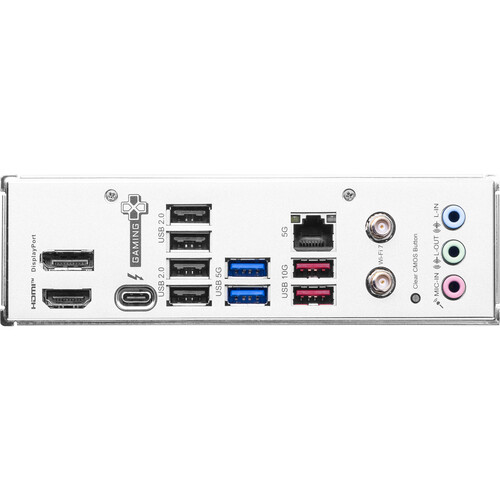

The rear panel includes one 40 Gb/s Thunderbolt 4 port, two 10 Gb/s USB-A 3.2 Gen 2 ports, four USB 2.0 ports, and two 5 Gb/s USB-A 3.2 Gen 1 ports. An HDMI 2.1 port and DisplayPort 1.2 port allow you to take advantage of processors with integrated graphics.

Front-panel headers support one 10 Gb/s USB-C port alongside four USB-A 2.0 ports and four 5 Gb/s USB-A ports.

The 12+1+1 phase power system features an aggressive VRM design with a digital CPU power system and Core Boost technology to help sustain heavy gaming loads.

Easily boost your CPU performance with the press of a single button for instant overclocking through Game Boost. Support for AMD Expo technology simplifies memory overclocking.

The VRM heat sink covers the upper MOS and helps dissipate the heat.

Specially designed M.2 SSD heat sinks help to prevent speed throttling with intensive workloads.

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at high performance.

Install up to six system fans and a water pump solution to optimize performance. Frozr AI automatically detects the CPU and GPU temperatures, adjusting the fan speeds accordingly.

Enhance your system with RGB lighting strips and other devices, which can be synced with Mystic Light–compatible peripherals such as keyboards and mice.

The PCB is made of a 6-layered server-grade PCB material to ensure stable performance.
