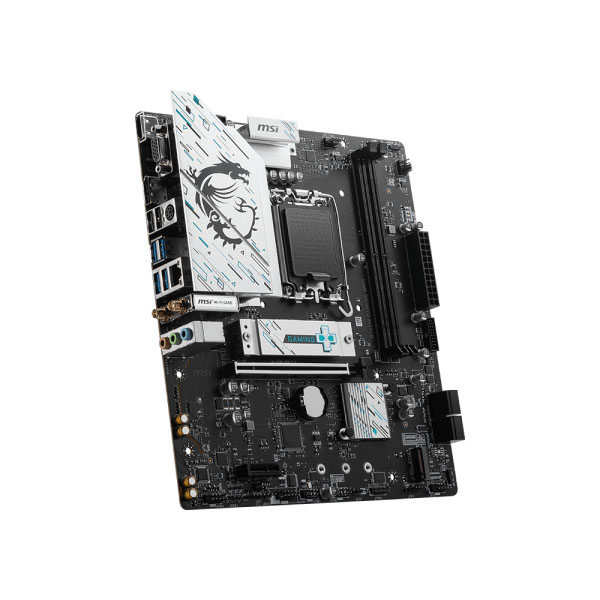

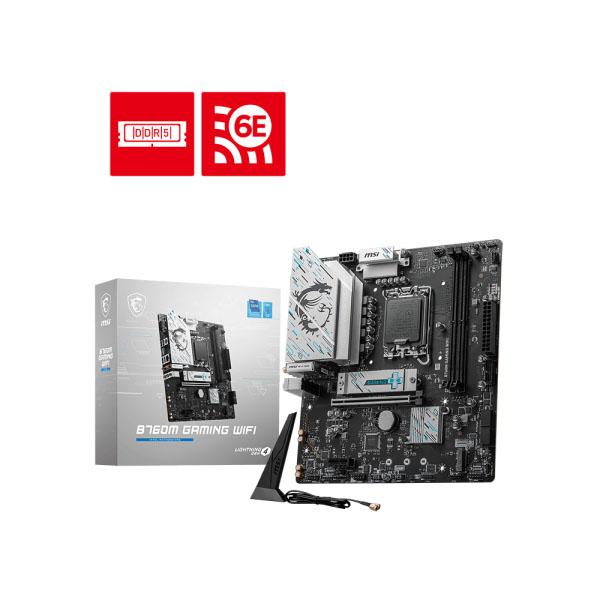

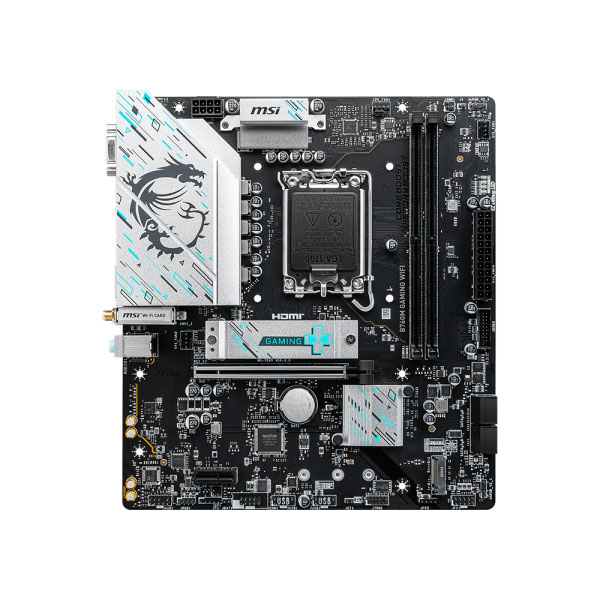

MSI B760M Gaming Wifi DDR5 Motherboard

Sale!53%

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-8000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

(Inclusive of GST)

SKU: B760M-GAMING-WIFI

Categories:MSI Motherboard, Motherboard

Tags:B760M-GAMING-WIFI, MSI, MSI B760M Gaming Wifi DDR5 Motherboard, MSI B760M Gaming Wifi DDR5, MSI MOTHERBOARD, MSI B760M Gaming Wifi, MSI B760M Motherboard

Brand: MSI

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

MSI B760M Gaming Wifi DDR5 Motherboard

Feature

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-8000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 and M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

MSI B760M GAMING WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

MSI B760m Gaming Wifi Stability

Cooling Overview

VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Lightning Gen 4 PCI-e with Steel Armor

MSI B760M Gaming Wifi DDR5 Motherboard - Green Apple Compunet

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

Msi B760M Gaming wifi Lighting Gen4 PCI-E

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

lan 2.5g wifi low-latency network with natenna

Wi-Fi 6E
Bluetooth 5.3
2.5G LAN

SPECIFICATIONS

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB
Memory Support	DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. Overclocking Frequency	1DPC 1R Max speed up to 8000+ MHz, 1DPC 2R Max speed up to 6400+ MHz
Supports	Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ (Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz), 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz), 1x VGA (Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*)
Slot	1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
Storage	2x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices), 4x SATA 6G (* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

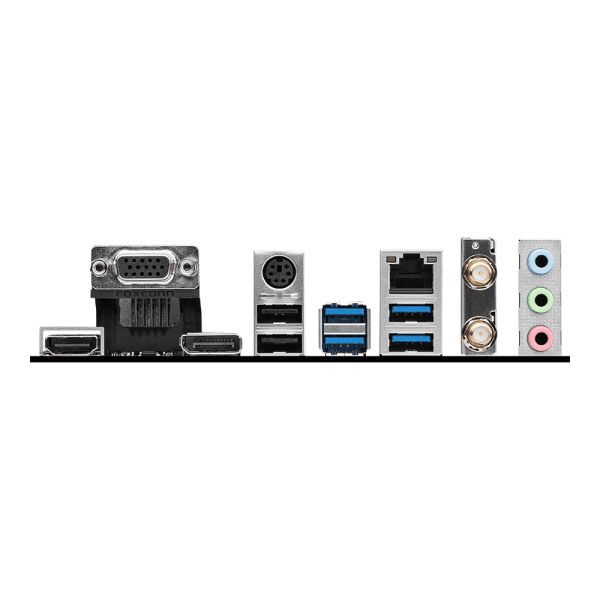

USB	2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8125B 2.5Gbps LAN
Wireless LAN & Bluetooth	Intel® Wi-Fi 6E (The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA)
Internal IO	1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports
LED Feature	4x EZ Debug LED

Weight	1 kg
Brand	MSI
Product Type	Gaming
Motherboard Size	mATX
Socket	LGA 1700
Chipset	B760
RAM Type	DDR5
Platform	Intel
EAN Code	4719072997326
Warranty	3 Years
color	Black
