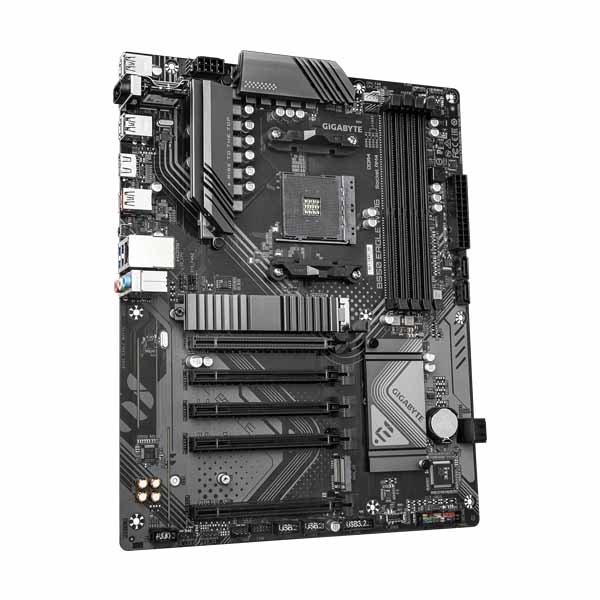

Gigabyte B550 EAGLE WIFI6 ATX AM4 Motherboard

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹22,550.00.Current price is: ₹17,900.00. (Inclusive of GST)

AMD B550 Chipset: Supports Ryzen 3000 & 5000 series processors.
Wi-Fi 6 Built-In: Fast, stable wireless connectivity.
ATX Form Factor: Full-size board with ample expansion options.
PCIe 4.0 Support: Next-gen GPU and NVMe SSD performance.

89 People watching this product now!

SKU: B550 EAGLE WIFI6

Add to wishlist

Gigabyte B550 EAGLE WIFI6 ATX AM4 Motherboard

Feature

AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital twin 10+3+1 phases VRM solution
Dual Channel DDR4 : 4*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch : PCIe slots with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal : VRM Thermal Armor Advanced
Fast Networking : GbE LAN & Wi-Fi 6
Extended Connectivity : HDMI, Displayport
PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Memory

Infinite Memory Performance

Gigabyte EAGLE motherboards boost DDR4 memory performance and offer top-notch compatibility using various advanced methods.

Sturdy VRM Design

Steady Power

Eagle Series with steady power keeps your AI operation smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

10 VCORE Phases Ppak

Unlock the full power of your multi-core CPU for unmatched performance.

* 5+5 phases parallel power design

3 SOC Phase Ppak

Optimized for integrated GPU performance and memory management within the CPU.

1DDR Phases Ppak

Cooling

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

“Stay Cool, Game On”

High-coverage MOSFETs with integrated molded heatsinks

Larger surface area for enhanced heat dissipation

More Bigger surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance

5 W/mK thermal pad for efficient thermal conductivity

High-performance thermal pad
Keeps your system cool and running at peak efficiency

Easy & Friendly

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Q-FLASH Auto Scan

The new Auto Scan function features when using USB flash drive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Category	Details
CPU	AMD Socket AM4, support for:
	- AMD Ryzen™ 5000 G-Series Processors
	- AMD Ryzen™ 5000 Series Processors
	- AMD Ryzen™ 4000 G-Series Processors
	- AMD Ryzen™ 3000 G-Series Processors
	- AMD Ryzen™ 3000 Series Processors
	(Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	** Support for native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
	Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication	Realtek® Wi-Fi 6 RTL8851BE
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 80MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
	- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 4 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
	- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
	1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	- AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
	- AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
	- 2 x USB 3.2 Gen 1 ports on the back panel
	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	1 x CPU cooler LED strip/RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x Clear CMOS jumper

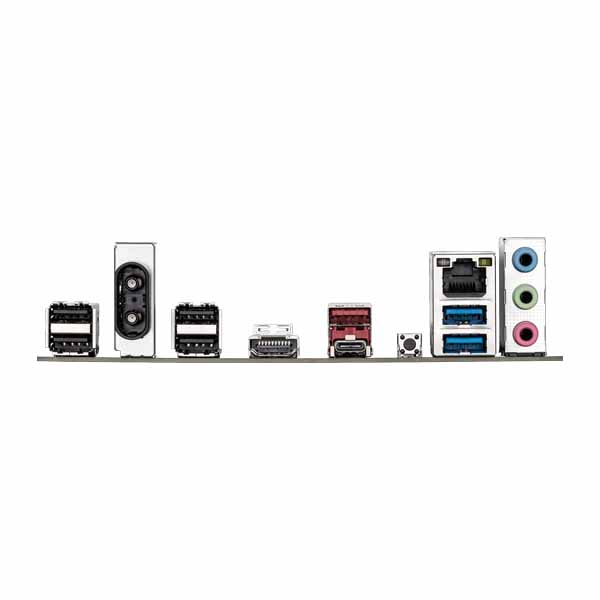

Back Panel Connectors	4 x USB 2.0/1.1 ports
	2 x antenna connectors (1T1R)
	1 x HDMI port (Note)
	1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
	1 x USB Type-C® port, with USB 3.2 Gen 1 support
	1 x Q-Flash Plus button
	1 x RJ-45 port
	2 x USB 3.2 Gen 1 ports
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	- @BIOS
	- EasyTune
	- RGB Fusion
	- Smart Backup
	- System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3-year warranty

Weight	2 kg
Product Type	Gaming
color	Black
Brand	Gigabyte
Chipset	B550
Motherboard Series	Gigabyte Eagle
Motherboard Size	ATX
Socket	AM4
Warranty	3 Years
EAN Code	4719331868406
Platform	AMD
RAM Type	DDR4
