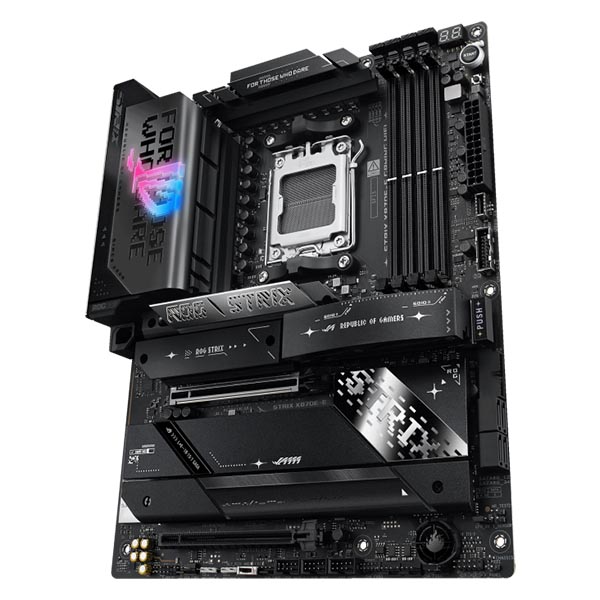

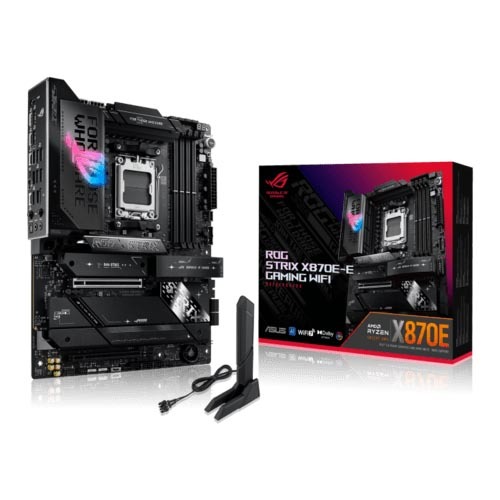

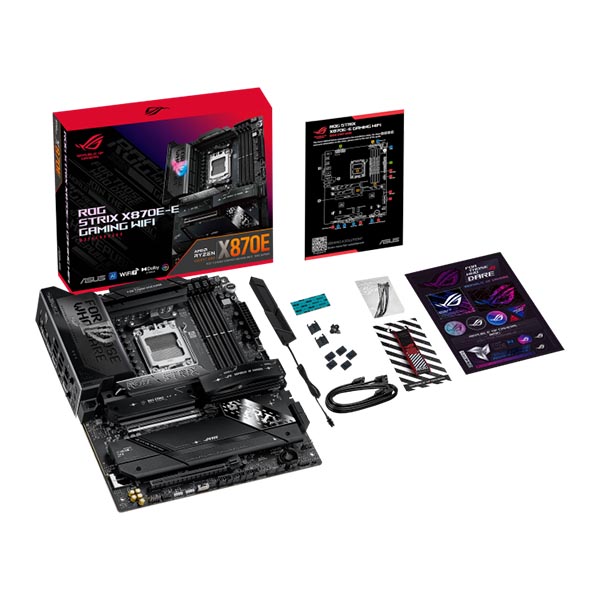

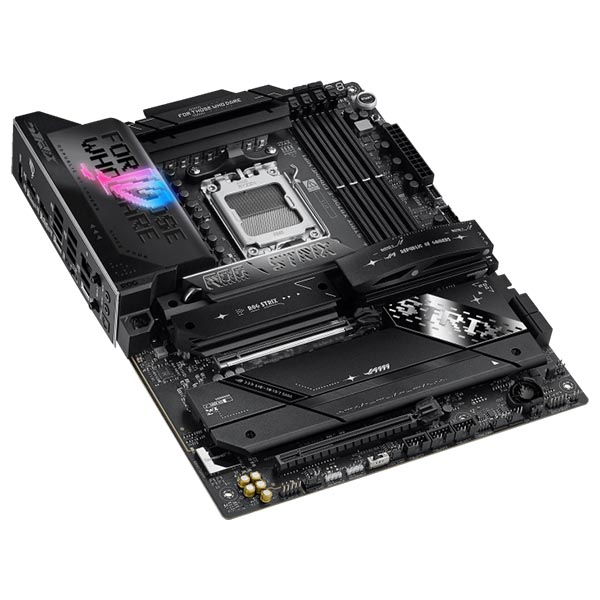

ASUS ROG Strix X870E-E GAMING WiFi Motherboard

ASUS ROG Strix X870E-E GAMING WiFi Motherboard

ASUS ROG Strix X870E-E Gaming WiFi AMD AM5 X870 ATX Motherboard 18+2+2 Power Stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5X M.2, PCIe® 5.0, Q-Release Slim, USB4®, AI OCing & Networking

Feature

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors.
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance.
• ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement.
• Robust Power Solution: 18+2+2 power solution rated for 110A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors.
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heat-pipe.
• Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions.
• Abundant Connectivity: Dual USB4 Type-C ports, USB 20Gbps Type-C front-panel connector, one USB 10Gbps port with PD 3.0 up to 30W and USB Wattage Watcher, nine additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
• High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5 Gb Ethernet.
• DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield.

The ASUS ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

Performance OVERCLOCKING

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

Performance Memory

DDR5 DOMINATION

The Strix X870E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

NitroPath DRAM Technology

Frequency up to 400 MT/s higher

Enhance the slot retention orce by 57%

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

COOLING

M.2

M.2 HEATSINKS, M.2 COMBO-SINK, M.2 BACKPLATE

VRM

VRM HEATSINK ARRAY

CPU

CPU FAN HEADERS, AIO PUMP FAN HEADER

CHASSIS

4-PIN FAN HEADERS

BIOS

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix X870E-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.
