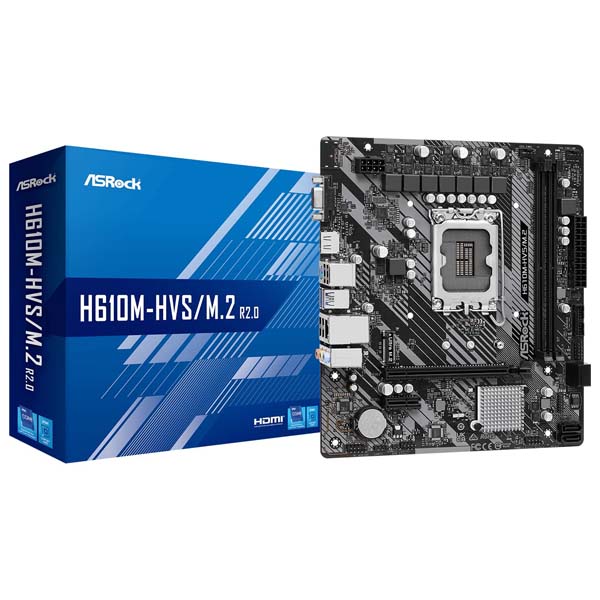

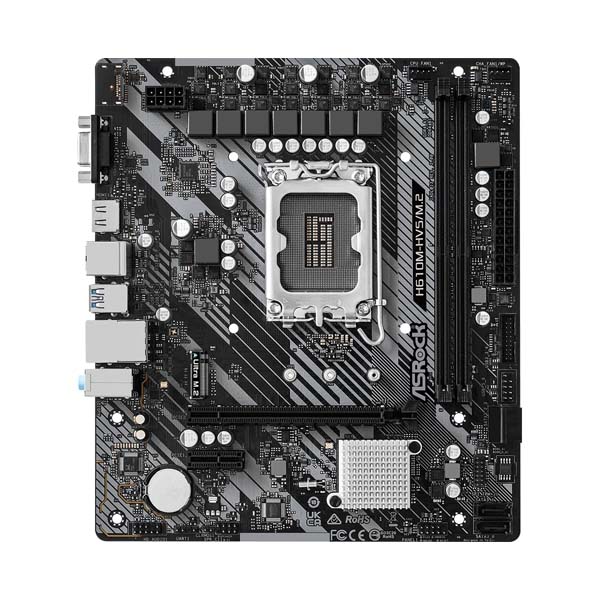

ASRock H610M-HVS/M.2 R2.0 DDR4 M-ATX LGA 1700 Motherboard

ASRock Super Alloy

• Premium Power Choke
• Sapphire Black PCB
• High Density Glass Fabric PCB

ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 6+1+1 Power Phase design
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 3200
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

• Intel® Xe Graphics Architecture (Gen 12)
• Dual graphics output: support HDMI and D-Sub ports by independent display controllers
• Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
• Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
• Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Supports Surge Protection

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• 1 x Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

CPU:

• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*

Chipset:

• 1 x PCIe 3.0 x1 Slot (PCIE1)

Chipset:

• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

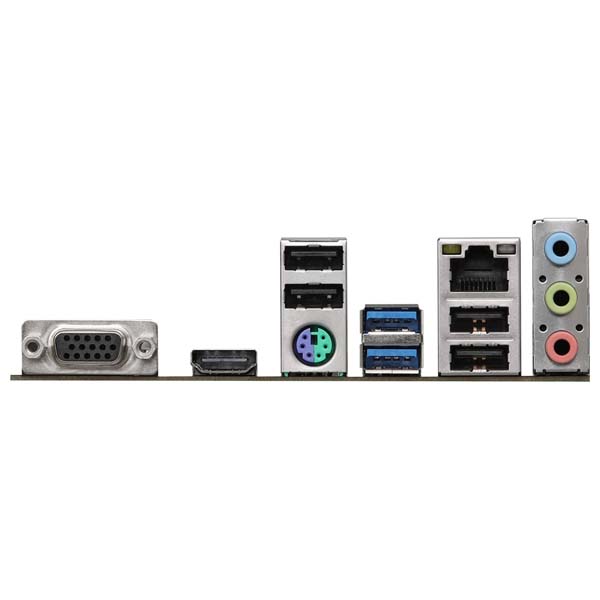

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Instant Flash

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

• Fan Tachometer: CPU, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
• CASE OPEN detection
• Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

• Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• Solid Capacitor design

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
