ASRock B650M-H/M.2+ Motherboard

Sale!47%

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi

(Inclusive of GST)

SKU: B650-H/M.2+

Categories:AsRock Motherboard, Motherboard

Tags:AsRock Motherboard, ASRock B650M-H/M.2+, ASRock B650M-H/M.2+ Motherboard, ASROCK

Brand: ASRock

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

ASRock B650M-H/M.2+ Motherboard

Feature

This asrock motherboard Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr. MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback

Build for The Most Advanced PC

Optimized VRM Design

Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Nahimic Audio

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Enhance Communication Quality

Ultimate Gaming Experience

●Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Ultimate Gaming Experience

●Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

SPECIFICATIONS

Model	B650M-H/M.2+
Unique Feature	Superb Productivity PCIe Gen5 (M.2) Dual Channel DDR5 Rock-Solid Durability 6+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter
CPU	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset	AMD B650
Memory	Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)* Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
Slots	CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
Connector	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

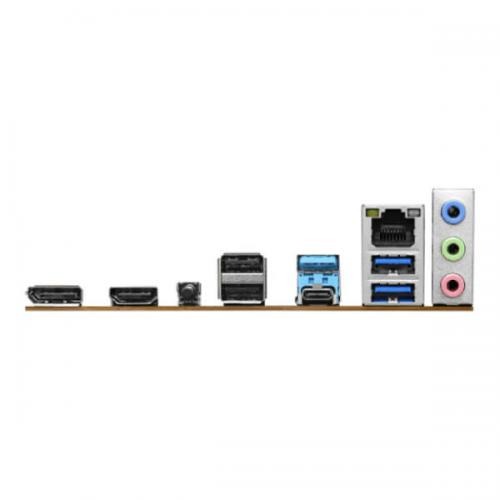

Rear Panel I/O	2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Accessories	1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Form Factor	Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS	Microsoft Windows 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	* Images are for Representation purposes only * Features, Price, Specifications are subject to change without notice.

Product Type	Normal
Brand	ASRock
Motherboard Size	mATX
Platform	AMD
Socket	AM5
Warranty	3 Years
Memory Series	DDR5
EAN Code	4710483943768
