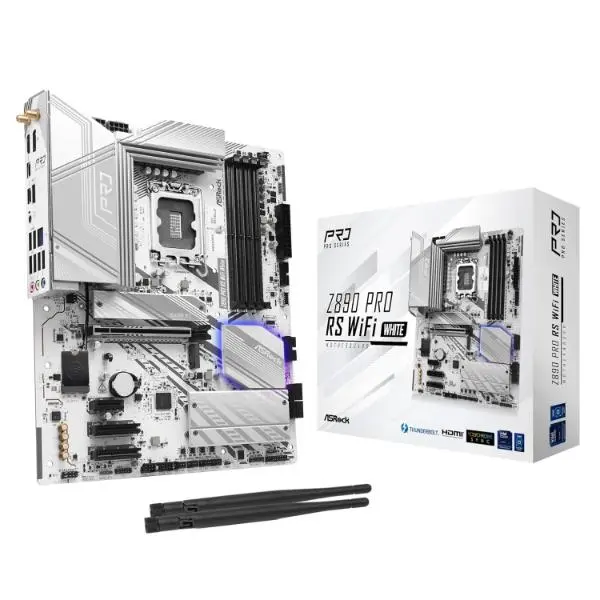

Asrock Z890 Pro RS WIFI DDR5 Intel LGA 1851 ATX Motherboard White

Sale!65%

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort,
2 Thunderbolt™ 4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4), 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 Thunderbolt™ 4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink

(Inclusive of GST)

SKU: Z890-PRO-RS-WIFI-WHITE

Categories:AsRock Motherboard, Motherboard

Tags:MOTHERBOARD, LGA 1851, Z890 Pro RS, ASROCK

Brand: ASRock

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

Asrock Z890 Pro RS WIFI DDR5 Intel LGA 1851 ATX Motherboard White

Z890 Pro RS WiFi White

Supports Intel^® Core™ Ultra Processors (Series 2)(LGA1851)
16+1+1+1+1 Power Phase, Dr .MOS for V Core +GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort,
2 Thunderbolt™ 4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3)
2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (2 Rear, 4 Front),
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink

Performance Gains from Intel^® 200S Boost

ASRock Z890 motherboards now support Intel^® 200S Boost through a simple BIOS update. Users can effectively “upgrade” their existing Intel^® Core Ultra processors and enjoy a significant performance boost.
Visit the ASRock official website to download the latest BIOS and experience the performance upgrade brought by Intel^® 200S Boost.

For more details on Intel^® 200S Boost, please visit the official Intel^®

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Enlarged M.2 Heatsink

XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Intelligent Cooling Design

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Enhanced M.2 Cooling

M.2 Bottom Heatsink

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Dragon 2.5 Gb/s LAN

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Audio That Matters

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

SignalRGB

Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

DIY Friendly

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

EZ Setting

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installerstep2 : Update drivers neededstep3 : Done!

Auto Driver Installer

SPECIFICATIONS

Model Name	Z890 Pro RS WiFi White
Unique Feature	Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter
CPU	– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) – Integrated NPU for dedicated AI acceleration
Chipset	– Intel® Z890
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC) – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	– 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 – Supports MU-MIMO
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front)
Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Accessories	– 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Screw for M.2 Socket – 1 x Standoff for M.2 Socket
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft Windows® 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Brand	ASRock
Chipset	Z890
color	White
Memory Series	DDR5
Motherboard Size	ATX
Socket	LGA 1851
Warranty	3 Years
