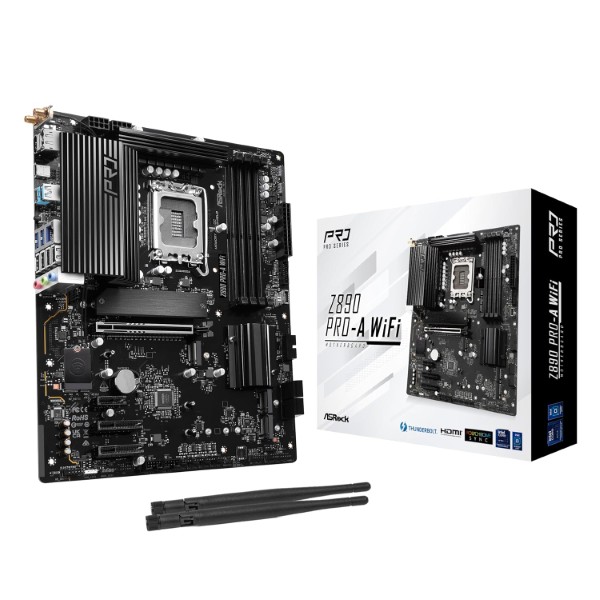

ASRock Z890 Pro-A WiFi 6E Intel Core Ultra DDR5 LGA1851 ATX Motherboard

Sale!61%

Supports Intel^® Core™ Ultra Processors (Series 2)(LGA1851)
16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance

(Inclusive of GST)

SKU: Z890 Pro A WIFI

Categories:AsRock Motherboard, Motherboard

Tags:ASROCK, MOTHERBOARD, ATX, LGA1851, Z890 Pro-A, wifi 6e

Brand: ASRock

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

ASRock Z890 Pro-A WiFi 6E Intel Core Ultra DDR5 LGA1851 ATX Motherboard

Supports Intel^® Core™ Ultra Processors (Series 2)(LGA1851)
16+1+1+1+1 Power Phase, Dr. MOS for V Core +GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3)
1 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (2 Rear, 4 Front),
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Z890 Pro-A WiFi

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Performance Gains from Intel^® 200S Boost

ASRock Z890 motherboards now support Intel^® 200S Boost through a simple BIOS update.Users can effectively “upgrade” their existing Intel^® Core Ultra processors and enjoy a significant performance boost.
Visit the ASRock official website to download the latest BIOS and experience the performance upgrade brought by Intel^® 200S Boost.

For more details on Intel^® 200S Boost, please visit the official Intel^®

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Intelligent Cooling Design

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Enhanced M.2 Cooling

M.2 Bottom Heatsink

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Signal RGB

Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

SPECIFICATIONS

Model
Brand	ASRock
Model	Z890 Pro-A WiFi
Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)
Chipsets
Chipset	Intel Z890
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
	1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively.
	1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
	2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
	2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
	Max. capacity of system memory: 256GB
	Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion Slots
PCI Express 5.0 x16	CPU:
	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x4	Chipset:
	2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
PCI Express x1	1 x PCIe 4.0 x1 Slot (PCIE2)*

	* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
	* Supports NVMe SSD as boot disks
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU:
	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

	* Supports Intel Volume Management Device (VMD)
	* Supports NVMe SSD as boot disks
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 axe
Bluetooth	Bluetooth 5.3
Rear Panel Ports
Back I/O Ports	2 x Antenna Ports
	1 x HDMI Port
	1 x DisplayPort 1.4
	1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
	1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
	2 x USB 3.2 Gen1 Ports
	4 x USB 2.0 Ports
	1 x RJ-45 LAN Port
	1 x BIOS Flashback Button
	HD Audio Jacks: Line in / Front Speaker / Microphone
	* Supports USB PD 3.0 up to 5V@3A (15W) charging
Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors	1 x SPI TPM Header
	1 x Power LED and Speaker Header
	1 x RGB LED Header*
	3 x Addressable LED Headers**
	2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
	5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
	1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
	1 x Front Panel Audio Connector
	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
	*** CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
BIOS Feature	256Mb AMI UEFI Legal BIOS with GUI support
Software	Software
	ASRock Motherboard Utility (A-Tuning)
	ASRock Dragon 2.5G LAN Software
	ASRock Polychrome SYNC
	* These utilities can be downloaded from ASRock Live Update & APP Shop.
	UEFI
	ASRock EZ Mode
	ASRock Full HD UEFI
	ASRock My Favorites in UEFI
	ASRock Auto Driver Installer
	ASRock Instant Flash
Windows 11	Supported
Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24 pin ATX Power Connector
	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Features
Features	Superb Productivity
	PCIe Gen5 (Graphics, M.2)
	Dual Channel DDR5
	Thunderbolt 4 Type-C Port (40 Gb/s)
	Rock-Solid Durability
	16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
	Memory OC Shield
	Ultrafast Connectivity
	2.5G LAN
	EZ Update
	BIOS Flashback Button
	ASRock Auto Driver Installer
	EZ Troubleshooter
	ASRock Post Status Checker
Packaging
Package Contents	1 x I/O Shield
	2 x SATA Data Cables
	2 x Screw for M.2 Socket

Brand	ASRock
Chipset	Z890
color	Black
Memory Series	DDR5
Motherboard Size	ATX
Socket	LGA 1851
Warranty	3 Years
